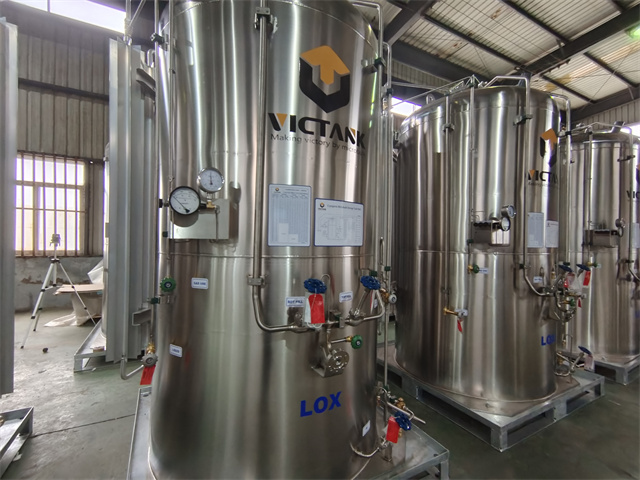

LOX LIN LAR Microbulk Tank 1000L 16bar

Standard: ASME
Water capacity: 1000L
Working pressure: 16bar
Gas flow rate: 40NM3/H
Gas Medium: liquid oxygen (LOX), liquid nitrogen (LIN), liquid argon (LAr).
Advantages:
The charge loss is low or even zero.
Longer liquid gas hold times.
Availability:
Inquire Add to Basket

Microbulk is a modern concept where your gas is supplied by filling on-site versus the traditional method by handling numbers of empty cylinders and dewars. Microbulk enjoys outstanding features in microbulk gas delivery.


Various capacity optional 1000L 2000L, 3000L, 5000L; Working pressure 16bar, 24bar, 35bar. MP tank with 16bar working pressure is widely used for hospital medical oxygen storage.



LOX LIN LAR Microbulk Tank 1000L 16bar (1)     LOX LIN LAR Microbulk Tank 1000L 16bar (2)

ASME standard 1000L-16bar

MB1000MP

MAWP

Mpa(psi)

1.6(230)

Max.   Pre-set Operating Press

Mpa(psi)

1.0(150)

Gross   Volume

L(gal)

1040(275)

Net   Volume

L(gal)

988(261)

NER(Nitrogen)

%/Day

0.7

Tare   Weight

kg(lbs)

730(1609)

Gaseous   Volume(Oxygen)

Nmˆ3(SCF)

789(27857)

Gaseous   Volume(Nitrogen)

Nmˆ3(SCF)

635(22435)

Gaseous   Volume(Argon)

Nmˆ3(SCF)

772(27250)

Gas   delivery rate

Nmˆ3/H(SCFH)

40(1413)

Pallet   Width "A"

mm(inch)

1250(49.21)

Pallet   Length "B"

mm(inch)

1250(49.21)

Tank   Diameter "D"

mm(inch)

1108(43.62)

Overall   Height "H"

mm(inch)

2245(88.38)

Material:

Inner   vessel: stainless steel

Outer vessel: stainless steel


Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.


Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.


microbulk tankmicrobulkmicrobulkmicrobulkmicrobulkmicrobulk

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years for vacuum, which is the best and only in the world!


Free training on installation, operation and maintenance.

Life-long technical assistance online.



LOX LIN LAR Microbulk Tank 1000L 16bar (1)    LOX LIN LAR Microbulk Tank 1000L 16bar (3)


  • 4units 1m3 microbulk tank shipped by one 20ft container.

  • 3units 2m3 microbulk tank shipped by one 20OT container or one 40ft container.

  • 3units 3m3 microbulk tank shipped by one 20OT container or one 40ft container.

  • 2units 5m3 microbulk tank shipped by one 20OT container or 3 units by one 40ft container.


  LOX LIN LAR Microbulk Tank 1000L 16bar (3)          LOX LIN LAR Microbulk Tank 1000L 16bar (4)
