Lorry Tanker with pump 4bar 6m3

Standard: ASME
Water capacity: 6m3
Working pressure: 4bar
Gas Medium: LIN (liquid nitrogen), LOX (liquid oxygen), LAR (liquid argon)
Fast discharging of liquid gases with pump

Availability:

The microbulk mobile tanker with pump assures you of fast discharging of liquid gases, and gives you an efficient gas delivery solution.


The cryogenic lorry tanker is with international brand pump CRYOSTAR. The water capacity is 6m3, and working pressure 4bar.

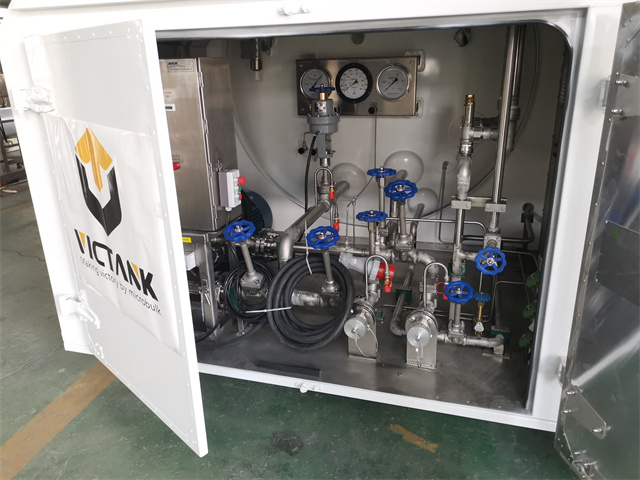

Lorry Tanker with pump 4bar 6m3 to 14m3 (1)Lorry Tanker with pump 4bar 6m3 to 14m3 (2)Lorry Tanker with pump 4bar 6m3 to 14m3 (3)

NO

NAME

PARAMETERS

1

Model No.

LT6-0.4

2

Water Volume

6m3

3

Max Working Pressure

0.4MPa

4

Loading Medium

LOX, LIN, LAR

5

Design Code

ASME

6

Main Material

Inner Vessel

SA-240M 304

Outer Vessel

Q345R

7

Design Temperature

‐196/+50℃

8

Isolating Type

Multi-layer insulation

9

Valve

China brand Valves

10

Pump

Including CRYOSTAR pump


Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.


Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

victank报告1victank报告3victank报告6victank报告5victank报告4victank报告2

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years for vacuum, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.

1

Based on different type, the Lorry Tanker with Pump 4bar 6m3 for Tansportation can be shipped by 20GP, 40GP, 40HQ container.

Lorry Tanker with pump 4bar 6m3 to 14m3 (3)
