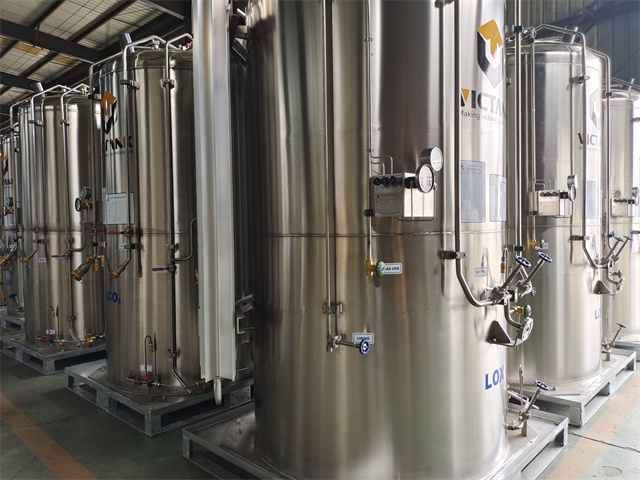

Microbulk enable small and medium volume users to enjoy the benefits of on-site gas delivery. MicroBulk Storage Systems provide reliable, efficient and economical solutions for liquid nitrogen, oxygen, argon, CO2, N2O, and LNG.
Various capacity optional 1000L 2000L,3000L,5000L; Working pressure 16bar, 24bar, 35bar.
Microbulk, when used as oxygen liquid tank, has many advantages compared with traditional oxygen cylinders. Microbulk liquid oxygen storage tank provides solution for filling gas on-site. Without a number of oxygen cylinders placed in a yard, using Microbulk oxygen liquid tank system is more efficient for the equipment management and operation.
Module design combining with the Microbulk lox tanksand the vaporizer, easy for installation.
Microbulk oxygen storage tank system brings more safety to the whole application. Microbulk lox tanks system can bring the stable and uninterrupted O2 supply, especially under the large O2 supplying capacity mode.
When higher oxygen flow rate is needed, we could customize Microbulk liquid oxygen storage tank system with larger Vaporizer.it is also can be used as Liquid argon tank.
ASME standard 5000L-16bar | MB5000MP | |
MAWP | Mpa(psi) | 1.6(230) |
Max. Pre-set Operating Press | Mpa(psi) | 1.0(150) |
Gross Volume | L(gal) | 5168(1365) |
Net Volume | L(gal) | 4910(1297) |
NER(Nitrogen) | %/Day | 0.4 |
Tare Weight | kg(lbs) | 2613(5761) |
Gaseous Volume(Oxygen) | Nmˆ3(SCF) | 3920(138427) |
Gaseous Volume(Nitrogen) | Nmˆ3(SCF) | 3157(111484) |
Gaseous Volume(Argon) | Nmˆ3(SCF) | 3834(135411) |
Gas delivery rate | Nmˆ3/H(SCFH) | 100(3532) |
Pallet Width "A" | mm(inch) | 2100(82.67) |
Pallet Length "B" | mm(inch) | 2100(82.67) |
Tank Diameter "D" | mm(inch) | 1910(75.2) |
Overall Height "H" | mm(inch) | 3150(124.02) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |
Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.
Full sets of test report are provided along with microbulk tanks.
Third party test reports are available upon request.
More details about reports and certificates, just contact Victank.
Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!
Free training on installation, operation and maintenance.
Life-long technical assistance online.
4units 1m3 microbulk tank shipped by one 20FT container.
3units 2m3 microbulk tank shipped by one 20OT container. (open top container)
3units 3m3 microbulk tank shipped by one 20OT container. (open top container)
2units 5m3 microbulk tank shipped by one 20OT container. (open top container)
