With the "Client-Oriented" business philosophy, a rigorous quality control system, advanced manufacturing equipment and a strong R We will endeavor to maintain our great reputation as the best products supplier in the world. If you have any questions or comments, please contact with us freely.

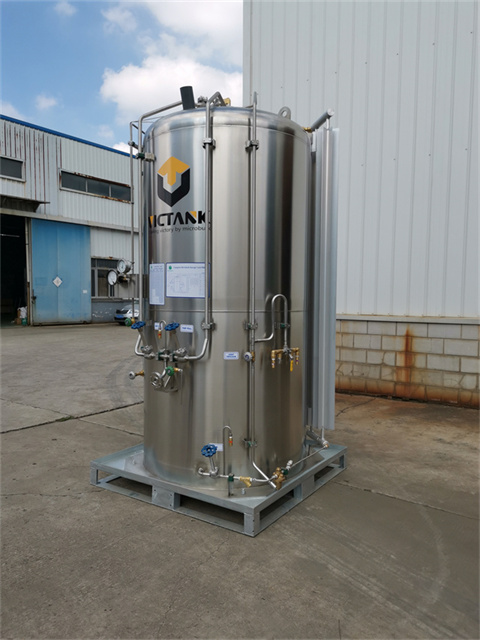

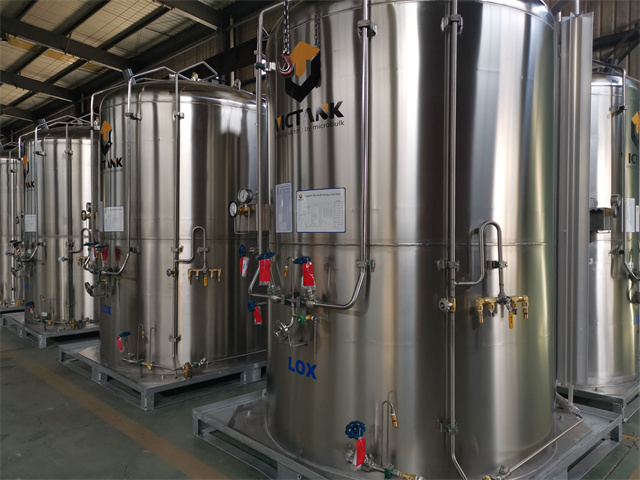

Microbulk is a modern concept where your gas is supplied by filling on-site vs. the traditional method by handling numbers of empty cylinders and dewars. Microbulk enjoys outstanding features mean exceptional performance.
Victank microbulks benefits:
It is an on-site filling solution for gas cylinder users.
The charge loss is low or even zero.
Longer liquid gas hold times.
Extraordinary thermal quality assures very little gas loss.
The boost speed is fast and the gas flow is large.
Quick recharge to save time and reduce costs.
Multiple pressures, different volumes, more choices.
Brand valves HEROSE, REGO, accessories, high reliability.
Small footprint, convenient transportation, simple installation.
Less operation and maintenance needed.
ASME standard 5000L-24bar | MC5000HP | |
MAWP | Mpa(psi) | 2.4(350) |
Max. Pre-set Operating Press | Mpa(psi) | 1.8(260) |
Gross Volume | L(gal) | 5168(1365) |
Net Volume | L(gal) | 4910(1297) |
NER(Nitrogen) | %/Day | 0.4 |
Tare Weight | kg(lbs) | 2855(6294) |
Gaseous Volume(CO2) | Nmˆ3(SCF) | 3147(111137) |
Gas delivery rate | Nmˆ3/H(SCFH) | 40(1413) |
Pallet Width "A" | mm(inch) | 2100(82.67) |
Pallet Length "B" | mm(inch) | 2100(82.67) |
Tank Diameter "D" | mm(inch) | 1910(75.2) |
Overall Height "H" | mm(inch) | 3150(124.02) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |
Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.
Full sets of test report are provided along with microbulk tanks.
Third party test reports are available upon request.
More details about reports and certificates, just contact Victank.
Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!
Free training on installation, operation and maintenance.
Life-long technical assistance online.
4units 1m3 microbulk tank shipped by one 20FT container.
3units 2m3 microbulk tank shipped by one 20OT container. (open top container)
3units 3m3 microbulk tank shipped by one 20OT container. (open top container)
2units 5m3 microbulk tank shipped by one 20OT container. (open top container)
Once your order is shipped, you will receive an email from us with the tracking number. If you have any further questions please feel free to contact me. 2m3 ln2 cryogenic oxygen tank in nigeria - Victank, The product will supply to all over the world, such as: Rome, Zimbabwe, Kuala Lumpur, Grenada, Our company, is always regarding quality as company' s foundation, seeking for development via high degree of credibility , abiding by iso9000 quality management standard strictly , creating top-ranking company by spirit of progress-marking honesty and optimism.
