2m3 o2 microbulk in yemen - Victank

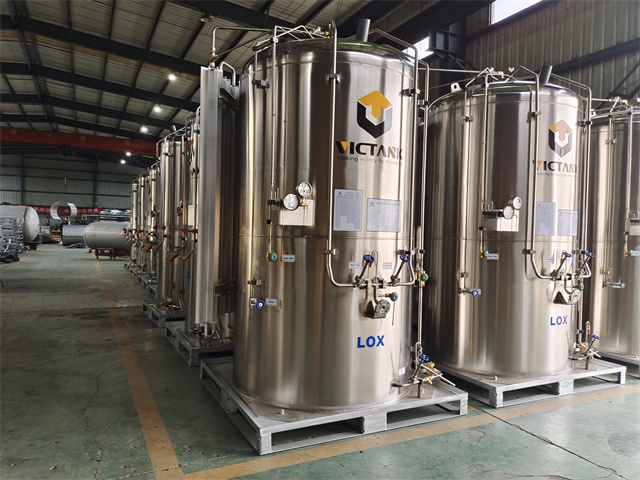

Microbulk Tank MB2000VHP
Inquire

We can constantly satisfy our respected customers with our good high quality, good price tag and good support due to we have been additional specialist and extra hard-working and do it in cost-effective way for Please don't hesitate to contact us if you are interested in our products. We firmly believe our products will make you satisfied.

Description

Microbulk tank is an innovative product which can provide an more economical and convenient delivery and design specially for the industry field, lab and medicine area. Compared with other cylinder, Microbulk tank is more reliable, safer, efficient and economical.

Microbulk systems are available for oxygen, nitrogen, argon, carbon dioxide, nitrous oxide(N2O), LNG and in high pressure, high flow applications including laser assist gases.

Various capacity optional 1000L, 2000L,3000L,5000L;Working pressure 16bar ,25bar,35bar.

35bar is popular for lasering cutting.

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (6)

Technical Datasheet

ASME standard 2000L-35bar

MB2000VHP

MAWP

Mpa(psi)

3.5(500)

Max. Pre-set Operating Press

Mpa(psi)

3.1(450)

Gross Volume

L(gal)

2107(557)

Net Volume

L(gal)

1938(512)

NER(Nitrogen)

%/Day

0.6

Tare Weight

kg(lbs)

1490(3285)

Gaseous Volume(Oxygen)

Nmˆ3(SCF)

1548(54655)

Gaseous Volume(Nitrogen)

Nmˆ3(SCF)

1246(44017)

Gaseous Volume(Argon)

Nmˆ3(SCF)

1514(53464)

Gas delivery rate

Nmˆ3/H(SCFH)

75(2649)

Pallet Width "A"

mm(inch)

1500(59.05)

Pallet Length "B"

mm(inch)

1500(59.05)

Tank Diameter "D"

mm(inch)

1308(51.5)

Overall Height "H"

mm(inch)

3060(120.47)

Material:

Inner vessel: stainless steel

Outer vessel: stainless steel


Reports & Certificate

Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.

Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.

More details about reports and certificates, just contact Victank.

Warranty

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!

Free training on installation, operation and maintenance.

Life-long technical assistance online.


Packaging & Shipping

4units 1m3 microbulk tank shipped by one 20FT container.

3units 2m3 microbulk tank shipped by one 20OT container. (open top container)

3units 3m3 microbulk tank shipped by one 20OT container. (open top container)

2units 5m3 microbulk tank shipped by one 20OT container. (open top container)

microbulk tank, liquid oxygen tank, lox tank, cryogenic tank, Liquid nitrogen tank, LIN, LAR, LCO2, LNG, liquid argon, medical, liquid gas tank (7)

Our main principle is equality and mutual benefit, we hope to promote both trade and friendship by joint efforts. 2m3 o2 microbulk in yemen - Victank, The product will supply to all over the world, such as: Naples, Jeddah, Hyderabad, Stuttgart, We warmly welcome domestic and overseas customers to visit our company and have business talk. Our company always insists on the principle of "good quality, reasonable price, the first-class service". We are willing to build long-term, friendly and mutually beneficial cooperation with you.
