"Quality to start with, Honesty as base, Sincere company and mutual profit" is our idea, as a way to build constantly and pursue the excellence for Our concept would be to assist presenting the confidence of each prospective buyers while using the offering of our most honest service, as well as right merchandise.

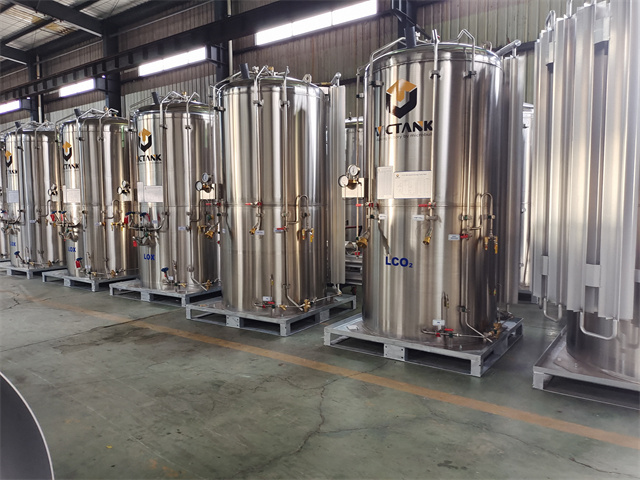

Microbulk enable small and medium volume users to enjoy the benefits of on-site gas delivery. Microbulk Transportation and Storage Systems provide reliable, efficient and economical solutions for liquid nitrogen, oxygen, argon, CO2, N2O, and LNG.
Designed to replace high pressure gas cylinders, VICTANK eliminates:
• waste and expense of full for empty gas cylinders
• cylinder change-overs
• residual gas losses
• lost or damaged cylinders
• cylinder inventory management
• manual handling injuries
ASME standard 2000L-25bar | PCT2000HP | |
MAWP | Mpa(psi) | 2.5(362) |
Max. Pre-set Operating Press | Mpa(psi) | 2.0(290) |
Gross Volume | L(gal) | 3031(801) |
Net Volume | L(gal) | 2789(737) |
NER(Nitrogen) | %/Day | 0.8 |
Tare Weight | kg(lbs) | 1515(3340) |
Gaseous Volume(Oxygen) | Nmˆ3(SCF) | 1548(54655) |
Gaseous Volume(Nitrogen) | Nmˆ3(SCF) | 1246(44017) |
Gaseous Volume(Argon) | Nmˆ3(SCF) | 1514(53464) |
Gas delivery rate | Nmˆ3/H(SCFH) | |
Pallet Width "L" | mm(inch) | 3300(129.92) |
Pallet Length "W" | mm(inch) | 1600(62.99) |
Tank Diameter "D" | mm(inch) | 1308(51.5) |
Overall Height "H" | mm(inch) | 1700(66.93) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |
Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.
Full sets of test report are provided along with microbulk tanks.
Third party test reports are available upon request.
More details about reports and certificates, just contact Victank.
Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!
Free training on installation, operation and maintenance.
Life-long technical assistance online.
1unit shipped by 1x20GP container.
3units shipped by 1x40GP container.
We've been convinced that with joint efforts, the enterprise between us will bring us mutual benefits. We could guarantee you item excellent and aggressive price tag for 35bar ar horizontal gas tank in dominica - Victank, The product will supply to all over the world, such as: Munich, Switzerland, Sheffield, Roman, Our experience makes us important in our customer eyes. Our quality speaks itself the properties like it do not tangle, shed or breakdown, so that are our customers will always be confident while placing an order.
