Bear "Customer initially, High-quality first" in mind, we work closely with our prospects and supply them with efficient and specialist companies for We are going to provide most effective quality, quite possibly the most current market aggressive rate, for each and every new and outdated consumers with the most great environmentally friendly solutions.

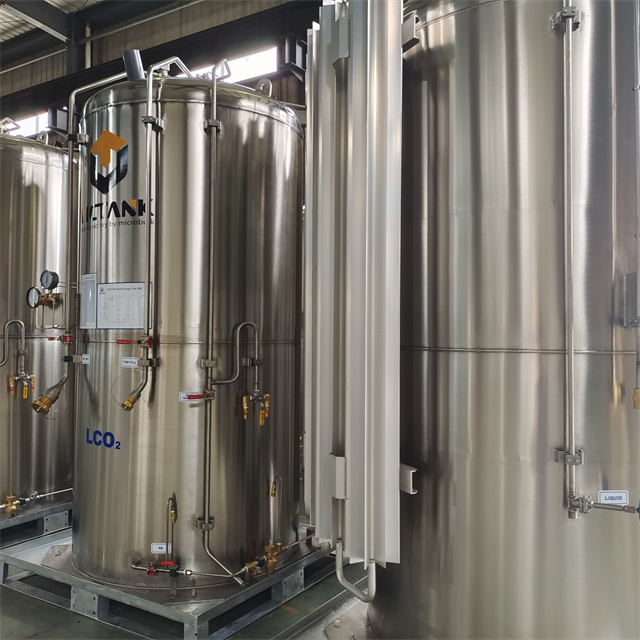

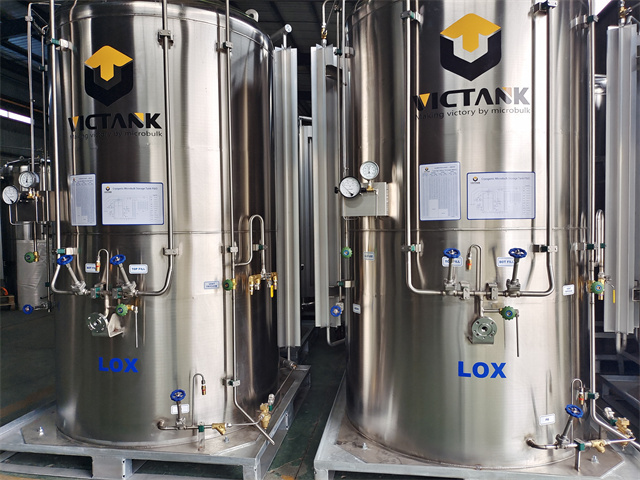

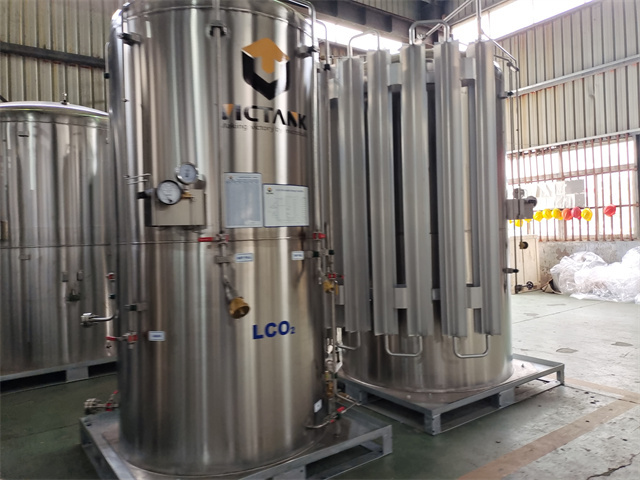

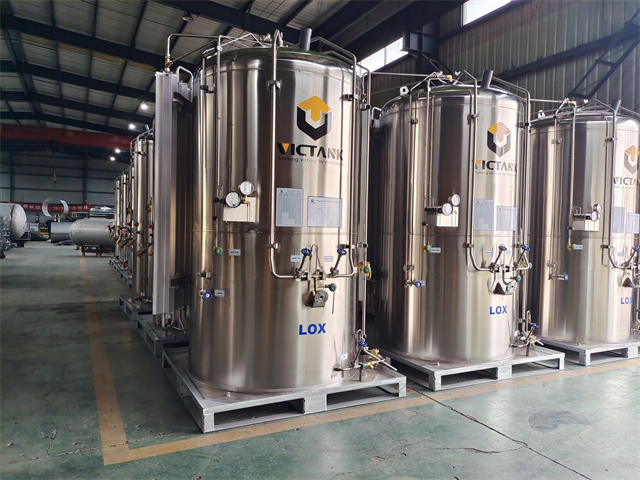

Microbulk enable small and medium volume users to enjoy the benefits of on-site gas delivery. Microbulk Transportation and Storage Systems provide reliable, efficient and economical solutions for liquid nitrogen, oxygen, argon, CO2, N2O, and LNG.
Designed to replace high pressure gas cylinders, VICTANK eliminates:
• waste and expense of full for empty gas cylinders
• cylinder change-overs
• residual gas losses
• lost or damaged cylinders
• cylinder inventory management
• manual handling injuries
ASME standard 2000L-25bar | PCT2000HP | |
MAWP | Mpa(psi) | 2.5(362) |
Max. Pre-set Operating Press | Mpa(psi) | 2.0(290) |
Gross Volume | L(gal) | 3031(801) |
Net Volume | L(gal) | 2789(737) |
NER(Nitrogen) | %/Day | 0.8 |
Tare Weight | kg(lbs) | 1515(3340) |
Gaseous Volume(Oxygen) | Nmˆ3(SCF) | 1548(54655) |
Gaseous Volume(Nitrogen) | Nmˆ3(SCF) | 1246(44017) |
Gaseous Volume(Argon) | Nmˆ3(SCF) | 1514(53464) |
Gas delivery rate | Nmˆ3/H(SCFH) | |
Pallet Width "L" | mm(inch) | 3300(129.92) |
Pallet Length "W" | mm(inch) | 1600(62.99) |
Tank Diameter "D" | mm(inch) | 1308(51.5) |
Overall Height "H" | mm(inch) | 1700(66.93) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |
Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.
Full sets of test report are provided along with microbulk tanks.
Third party test reports are available upon request.
More details about reports and certificates, just contact Victank.
Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!
Free training on installation, operation and maintenance.
Life-long technical assistance online.
1unit shipped by 1x20GP container.
3units shipped by 1x40GP container.
Adhering to your principle of "quality, assistance, performance and growth", we have now gained trusts and praises from domestic and international customer for Best lab 1m3 cryogenic liquid tank price - Victank, The product will supply to all over the world, such as: Suriname, Naples, Manila, Hamburg, We'd like to invite customers from abroad to discuss business with us. We can present our clients with high quality products and excellent service. We're sure that we'll have good cooperative relationships and make a brilliant future for both parties.
