We have been commitment to supply the competitive price ,excellent products and solutions high-quality, at the same time as fast delivery for Competitive price with high quality and satisfying service make us earned more customers.we wish to work with you and seek common development.

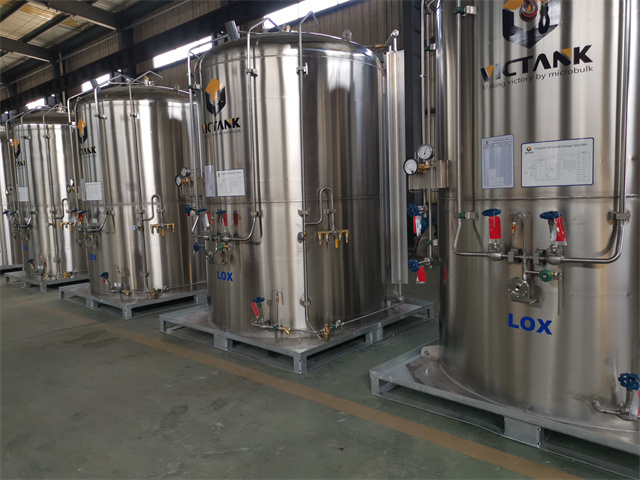

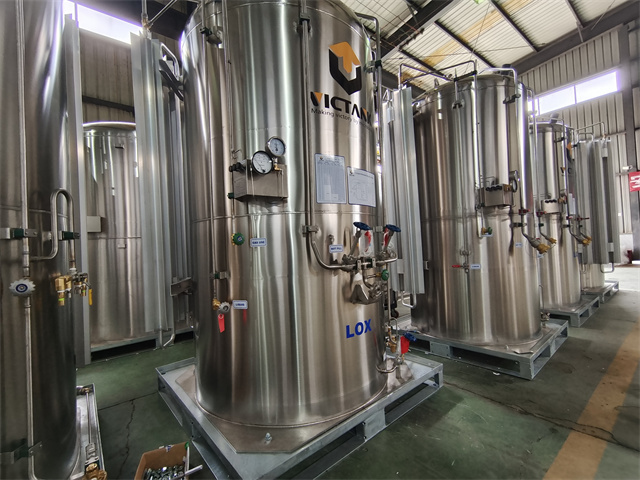

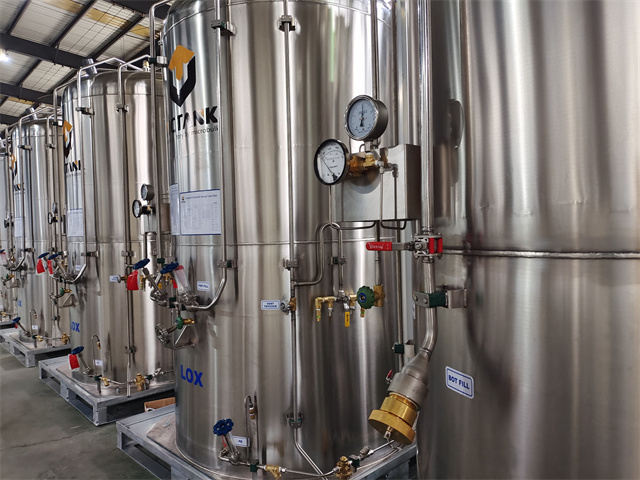

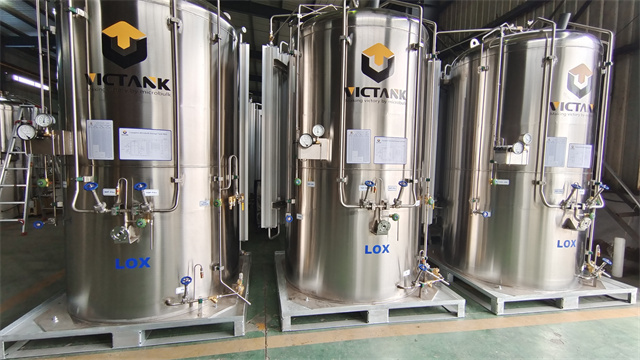

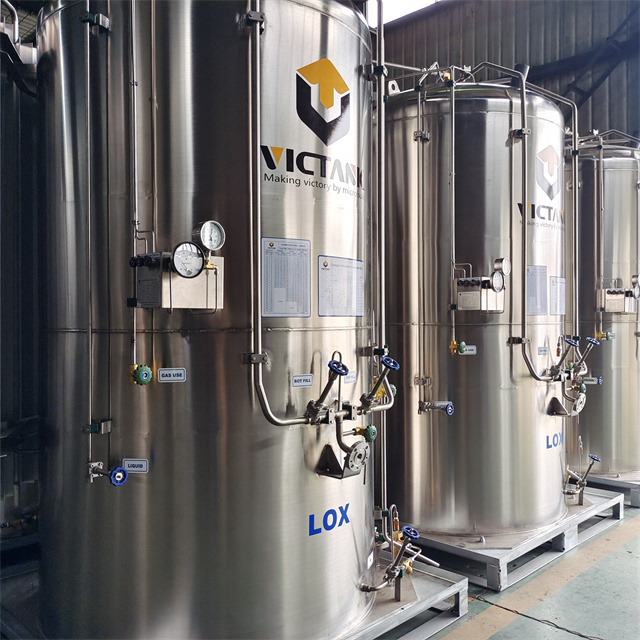

Microbulk is a modern concept where your gas is supplied by filling on-site vs. the traditional method by handling numbers of empty cylinders and dewars. Microbulk enjoys outstanding features mean exceptional performance.
Victank microbulk LNG satellite station is a smart and modular design for small LNG applications. The whole LNG station is built on skid, with LNG storage, regasification, pressure regulation, measurement, odorization and etc, which is very convenient for installation and operation.
Typical models are 1M3, 2M3, 3M3, 5M3, 7M3 and more.
Customization is available upon your specific requirements.
ASME standard 3000L-16bar | MN3000MP | |
MAWP | Mpa(psi) | 1.6(230) |
Max. Pre-set Operating Press | Mpa(psi) | 0.8(116) |
Gross Volume | L(gal) | 3031(800) |
Net Volume | L(gal) | 2727(720) |
NER(Nitrogen) | %/Day | 0.5 |
Tare Weight | kg(lbs) | 1750(3858) |
Gaseous Volume(NG) | Nmˆ3(SCF) | 3954(139634) |
Gas delivery rate | Nmˆ3/H(SCFH) | 75(2649) |
Pallet Width "A" | mm(inch) | 1700(66.92) |
Pallet Length "B" | mm(inch) | 1700(66.92) |
Tank Diameter "D" | mm(inch) | 1508(59.37) |
Overall Height "H" | mm(inch) | 3160(124.41) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |
Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.
Full sets of test report are provided along with microbulk tanks.
Third party test reports are available upon request.
More details about reports and certificates, just contact Victank.
Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!
Free training on installation, operation and maintenance.
Life-long technical assistance online.
4units 1m3 microbulk tank shipped by one 20FT container.
3units 2m3 microbulk tank shipped by one 20OT container. (open top container)
3units 3m3 microbulk tank shipped by one 20OT container. (open top container)
2units 5m3 microbulk tank shipped by one 20OT container. (open top container)
Being supported by an advanced and specialist IT team, we could give technical support on pre-sales Beverage gas 25bar asme tank in peru - Victank, The product will supply to all over the world, such as: Lesotho, Niger, Frankfurt, Denmark, We are your reliable partner in international markets with the best quality products. Our advantages are innovation, flexibility and reliability which have been built during the last twenty years. We focus on providing service for our clients as a key element in strengthening our long-term relationships. Our continual availability of high grade products in combination with our excellent pre-sales and after-sales service ensures strong competitiveness in an increasingly globalized market.
