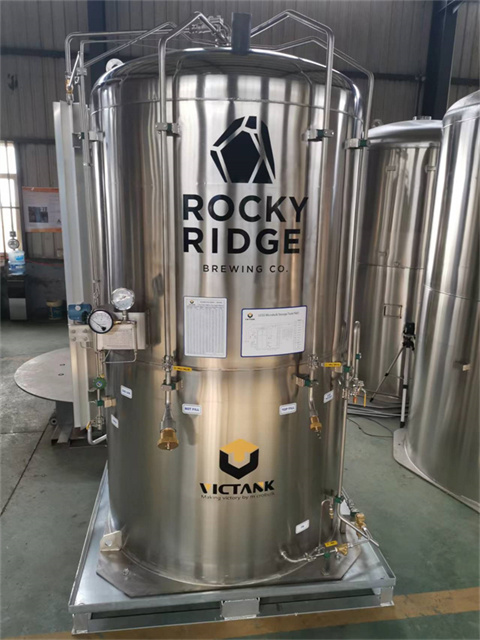

Microbulk, modern conception of gas supplied on-site
Microbulk tank is specially designed for efficient gas use for more longer retention time, more larger gas flow, more faster pressuring speed. The liquid lose can be rare even zero during a period of time because of the efficient thermal insulation structure.
Microbulk systems are available for oxygen, nitrogen, argon, carbon dioxide, nitrous oxide(N2O), LNG. Microbulk tank is widely used in industrial, medical, welding and cutting field, etc.
Various capacity optional 2000L,3000L,5000L; Working pressure 16bar ,25bar,35bar .
ASME standard 1000L-35bar | MB1000VHP | |
MAWP | Mpa(psi) | 3.5(500) |
Max. Pre-set Operating Press | Mpa(psi) | 3.1(450) |
Gross Volume | L(gal) | 1040(275) |
Net Volume | L(gal) | 957(253) |
NER(Nitrogen) | %/Day | 0.7 |
Tare Weight | kg(lbs) | 885(1951) |
Gaseous Volume(Oxygen) | Nmˆ3(SCF) | 764(26977) |
Gaseous Volume(Nitrogen) | Nmˆ3(SCF) | 615(21726) |
Gaseous Volume(Argon) | Nmˆ3(SCF) | 747(26389) |
Gas delivery rate | Nmˆ3/H(SCFH) | 40(1413) |
Pallet Width "A" | mm(inch) | 1250(49.21) |
Pallet Length "B" | mm(inch) | 1250(49.21) |
Tank Diameter "D" | mm(inch) | 1108(43.62) |
Overall Height "H" | mm(inch) | 2245(88.38) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |
Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.
Full sets of test report are provided along with microbulk tanks.
Third party test reports are available upon request.
More details about reports and certificates, just contact Victank.
Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!
Free training on installation, operation and maintenance.
Life-long technical assistance online.
4units 1m3 microbulk tank shipped by one 20FT container.
3units 2m3 microbulk tank shipped by one 20OT container. (open top container)
3units 3m3 microbulk tank shipped by one 20OT container. (open top container)
2units 5m3 microbulk tank shipped by one 20OT container. (open top container)
As a way to ideal meet up with client's desires, all of our operations are strictly performed in line with our motto "High Top quality, Competitive Cost, Fast Service" for Electronics 5m3 microbulk tank in kuwait - Victank, The product will supply to all over the world, such as: Surabaya, Sevilla, Lesotho, Rio de Janeiro, The best and original quality for spare parts is a most important factor for transportation. We may stick on supplying original and good quality parts even a little profit earned. God will bless us to do kindness business forever.
