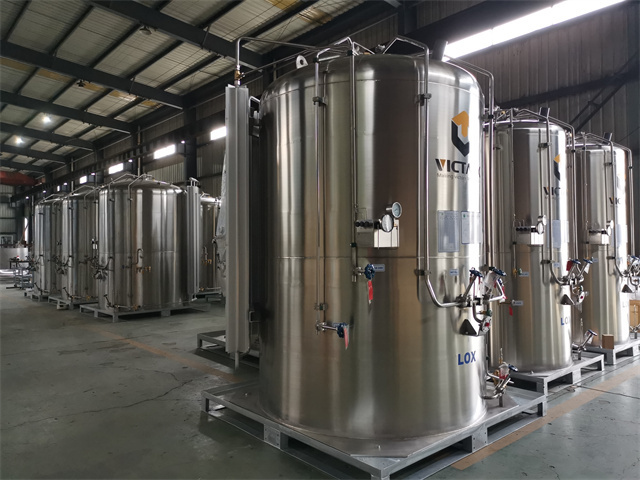

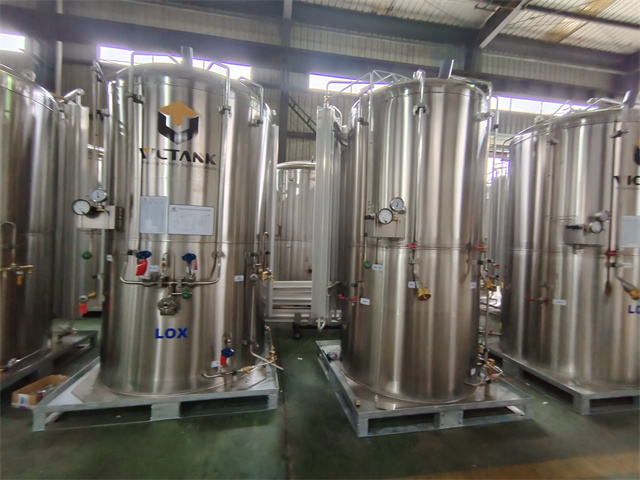

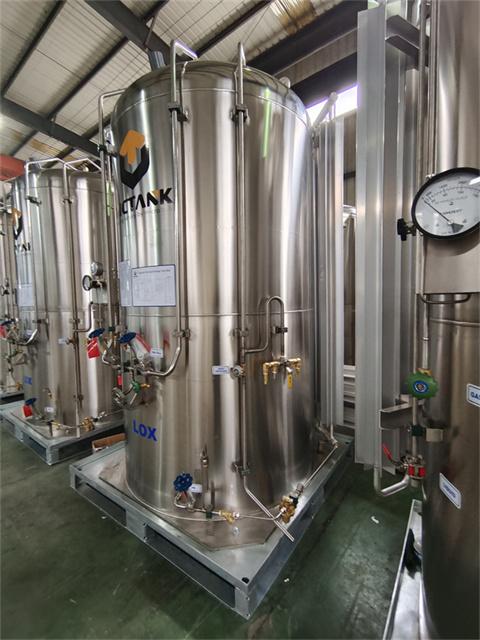

Microbulk is a modern concept where your gas is supplied by filling on-site vs. the traditional method by handling numbers of empty cylinders and dewars. Microbulk enjoys outstanding features mean exceptional performance.
Victank microbulk LNG satellite station is a smart and modular design for small LNG applications. The whole LNG station is built on skid, with LNG storage, regasification, pressure regulation, measurement, odorization and etc, which is very convenient for installation and operation.
Typical models are 1M3, 2M3, 3M3, 5M3, 7M3 and more.
Customization is available upon your specific requirements.
ASME standard 3000L-16bar | MN3000MP | |
MAWP | Mpa(psi) | 1.6(230) |
Max. Pre-set Operating Press | Mpa(psi) | 0.8(116) |
Gross Volume | L(gal) | 3031(800) |
Net Volume | L(gal) | 2727(720) |
NER(Nitrogen) | %/Day | 0.5 |
Tare Weight | kg(lbs) | 1750(3858) |
Gaseous Volume(NG) | Nmˆ3(SCF) | 3954(139634) |
Gas delivery rate | Nmˆ3/H(SCFH) | 75(2649) |
Pallet Width "A" | mm(inch) | 1700(66.92) |
Pallet Length "B" | mm(inch) | 1700(66.92) |
Tank Diameter "D" | mm(inch) | 1508(59.37) |
Overall Height "H" | mm(inch) | 3160(124.41) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |
Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.
Full sets of test report are provided along with microbulk tanks.
Third party test reports are available upon request.
More details about reports and certificates, just contact Victank.
Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!
Free training on installation, operation and maintenance.
Life-long technical assistance online.
4units 1m3 microbulk tank shipped by one 20FT container.
3units 2m3 microbulk tank shipped by one 20OT container. (open top container)
3units 3m3 microbulk tank shipped by one 20OT container. (open top container)
2units 5m3 microbulk tank shipped by one 20OT container. (open top container)
