We've one of the most innovative manufacturing devices, experienced and qualified engineers and workers, recognized good quality handle systems and also a friendly experienced income team pre/after-sales support for Our company eagerly looks forward to establishing long-term and friendly business partner relationships with clients and businessmen from all over the world.

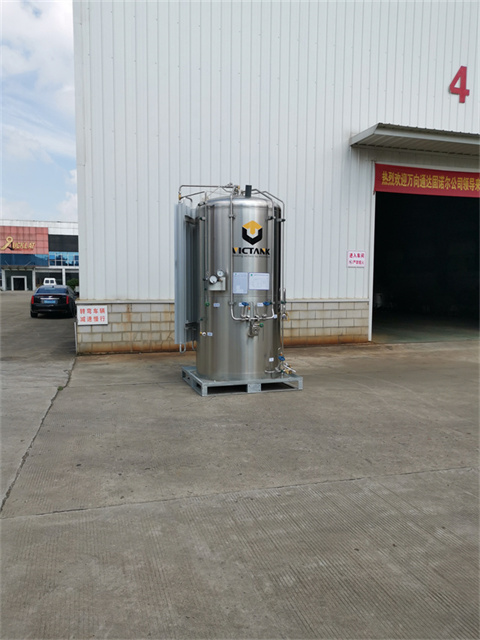

Microbulk is a modern concept where your gas is supplied by filling on-site vs. the traditional method by handling numbers of empty cylinders and dewars. Microbulk enjoys Outstanding features mean exceptional performance. Various tank sizes, pressures and configurations are available to meet your needs.
Microbulk is a complete gas supply and management solution that enables users of all sizes to enjoy the cost and efficiency benefits of switching to liquid gas from high pressure gas cylinders.
Various capacity optional 2000L,3000L,5000L for LCO2.
ASME standard 2000L-24bar | MC2000HP | |
MAWP | Mpa(psi) | 2.4(350) |
Max. Pre-set Operating Press | Mpa(psi) | 1.8(260) |
Gross Volume | L(gal) | 2107(556) |
Net Volume | L(gal) | 2002(529) |
NER(Nitrogen) | %/Day | 0.6 |
Tare Weight | kg(lbs) | 1305(2878) |
Gaseous Volume(CO2) | Nmˆ3(SCF) | 1283(45311) |
Gas elivery rate | Nmˆ3/H(SCFH) | 30(1059) |
Pallet Width "A" | mm(inch) | 1500(59.05) |
Pallet Length "B" | mm(inch) | 1500(59.05) |
Tank Diameter "D" | mm(inch) | 1308(51.5) |
Overall Height "H" | mm(inch) | 3060(120.47) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |
Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.
Full sets of test report are provided along with microbulk tanks.
Third party test reports are available upon request.
More details about reports and certificates, just contact Victank.
Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!
Free training on installation, operation and maintenance.
Life-long technical assistance online.
4units 1m3 microbulk tank shipped by one 20FT container.
3units 2m3 microbulk tank shipped by one 20OT container. (open top container)
3units 3m3 microbulk tank shipped by one 20OT container. (open top container)
2units 5m3 microbulk tank shipped by one 20OT container. (open top container)
To consistently enhance the management method by virtue of the rule of "sincerely, fantastic religion and top quality are the base of business development", we extensively absorb the essence of associated goods internationally, and constantly acquire new merchandise to satisfy the needs of shoppers for Food 25bar microbulk gas in gambia - Victank, The product will supply to all over the world, such as: Jeddah, Luxemburg, Vancouver, Azerbaijan, We welcome you to visit our company, factory and our showroom displayed various products that will meet your expectation, meanwhile, it is convenient to visit our website, our sales staff will try their efforts to offer you the best service. If you need to have more information, remember to do not hesitate to contact us by E-mail or telephone.
