We thinks what buyers think, the urgency of urgency to act during the interests of a purchaser position of theory, allowing for much better high-quality, reduced processing costs, charges are more reasonable, won the new and outdated consumers the support and affirmation for We attend seriously to produce and behave with integrity, and by the favor of customers at home and abroad in the xxx industry.

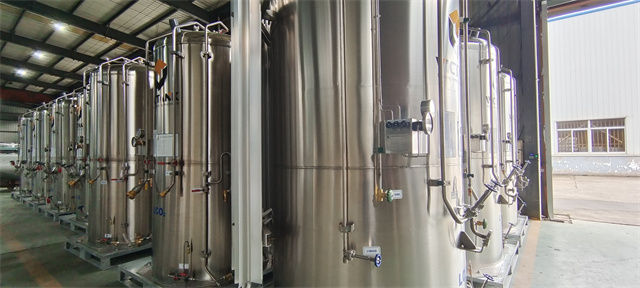

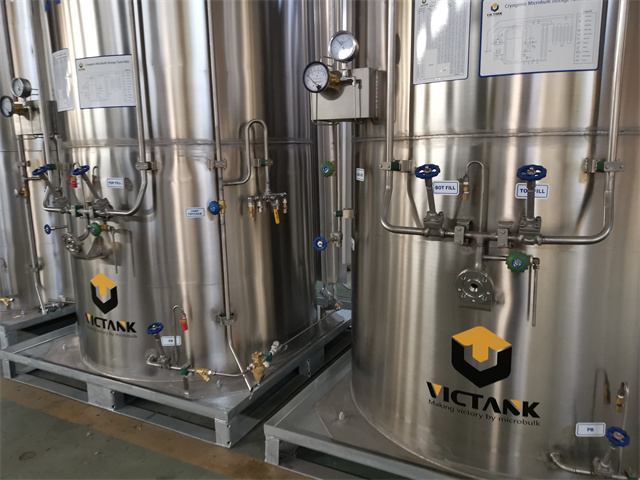

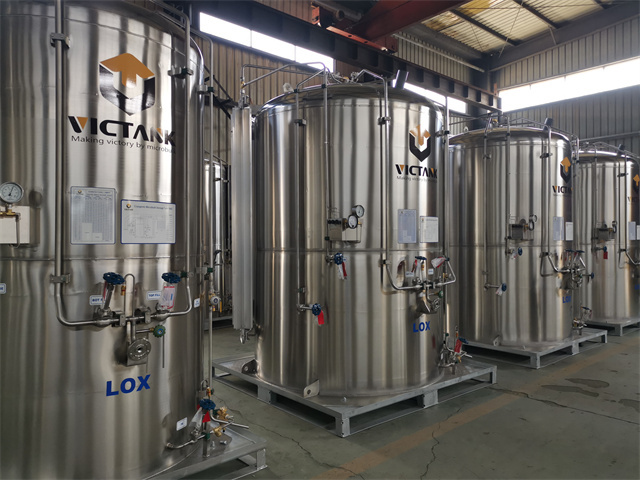

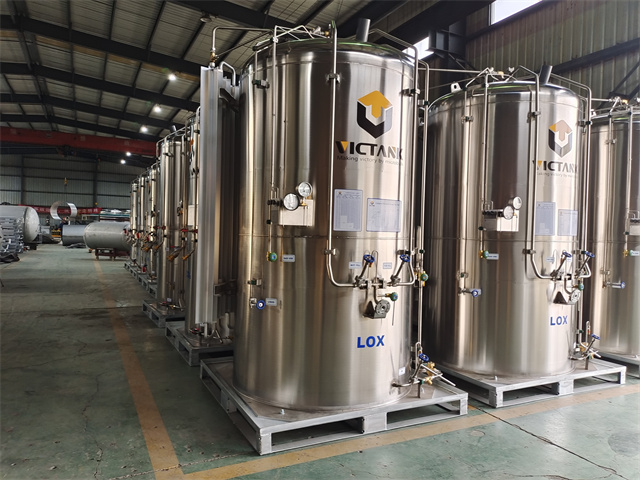

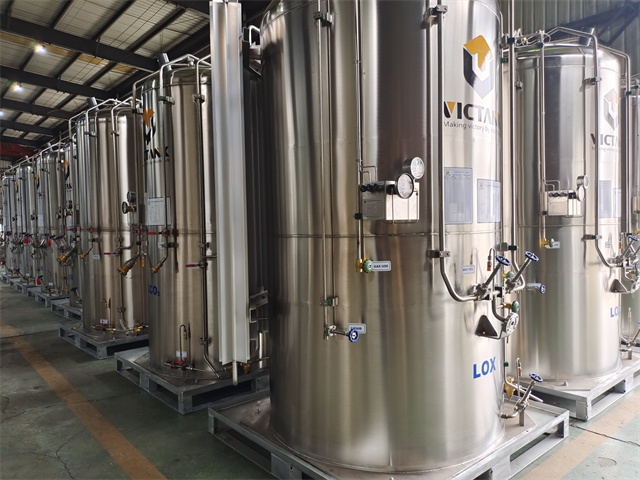

Microbulk systems are available for oxygen, nitrogen, argon, carbon dioxide, nitrous oxide(N2O), LNG. Microbulk tank is widely used in industrial, medical, welding and cutting field, etc.
Onsite microbulk storage from VICTANK helps you maximize safety, quality and efficiency in your operations:
• Mode change – no more swapping full-for-empty cylinder handling
• Dedicated cylinder set up for your application
• Product Range from high pressure gas to low pressure liquid delivery
• Built around application unlike high pressure bottle or liquid cylinder
• Ideal for liquid withdrawal
• Right sized for 1 fill per week or 1 fill per month simplifying inventory management
• With right sizing no need for excess cylinder inventory (leads to vent loss)
• fast pressure building speed
Various capacity optional 1000L 2000L,3000L,5000L; Working pressure 16bar ,25bar,35bar .
ASME standard 3000L-35bar | MB3000VHP | |
MAWP | Mpa(psi) | 3.5(500) |
Max. Pre-set Operating Press | Mpa(psi) | 3.1(450) |
Gross Volume | L(gal) | 3031(801) |
Net Volume | L(gal) | 2789(737) |
NER(Nitrogen) | %/Day | 0.5 |
Tare Weight | kg(lbs) | 2180(4806) |
Gaseous Volume(Oxygen) | Nmˆ3(SCF) | 2226(78623) |
Gaseous Volume(Nitrogen) | Nmˆ3(SCF) | 1793(63320) |
Gaseous Volume(Argon) | Nmˆ3(SCF) | 2178(76910) |
Gas delivery rate | Nmˆ3/H(SCFH) | 75(2649) |
Pallet Width "A" | mm(inch) | 1700(66.92) |
Pallet Length "B" | mm(inch) | 1700(66.92) |
Tank Dameter "D" | mm(inch) | 1508(59.37) |
Overall Height "H" | mm(inch) | 3160(124.41) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |
Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.
Full sets of test report are provided along with microbulk tanks.
Third party test reports are available upon request.
More details about reports and certificates, just contact Victank.
Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!
Free training on installation, operation and maintenance.
Life-long technical assistance online.
4units 1m3 microbulk tank shipped by one 20FT container.
3units 2m3 microbulk tank shipped by one 20OT container. (open top container)
3units 3m3 microbulk tank shipped by one 20OT container. (open top container)
2units 5m3 microbulk tank shipped by one 20OT container. (open top container)
We not only will try our best to offer excellent services to every customer, but also are ready to receive any suggestion offered by our customers for Icp 5000l liquid oxygen tank in zambia - Victank, The product will supply to all over the world, such as: Ottawa, Surabaya, Afghanistan, Ethiopia, We've got a dedicated and aggressive sales team, and many branches, catering to our customers. We are looking for long-term business partnerships, and ensure our suppliers that they will absolutely benefit in both short and long run.
