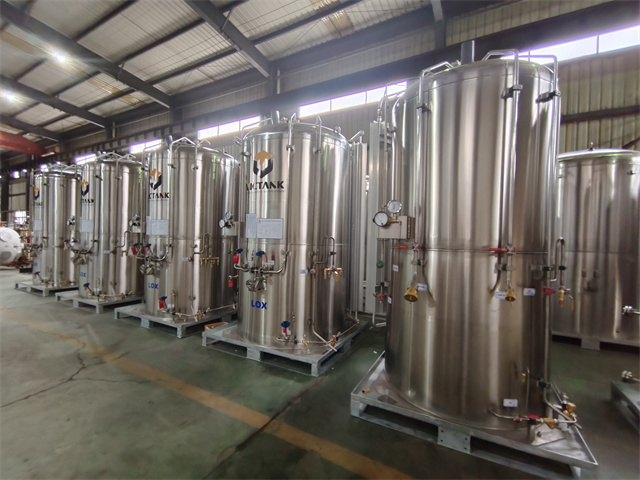

Microbulk tank is an innovative product which can provide an more economical and convenient delivery and design specially for the industry field, lab and medicine area. Compared with other cylinder, Microbulk tank is more reliable, safer, efficient and economical.
Microbulk systems are available for oxygen, nitrogen, argon, carbon dioxide, nitrous oxide(N2O), LNG and in high pressure, high flow applications including laser assist gases.
Various capacity optional 1000L, 2000L,3000L,5000L;Working pressure 16bar ,25bar,35bar.
35bar is popular for lasering cutting.
ASME standard 2000L-35bar | MB2000VHP | |
MAWP | Mpa(psi) | 3.5(500) |
Max. Pre-set Operating Press | Mpa(psi) | 3.1(450) |
Gross Volume | L(gal) | 2107(557) |
Net Volume | L(gal) | 1938(512) |
NER(Nitrogen) | %/Day | 0.6 |
Tare Weight | kg(lbs) | 1490(3285) |
Gaseous Volume(Oxygen) | Nmˆ3(SCF) | 1548(54655) |
Gaseous Volume(Nitrogen) | Nmˆ3(SCF) | 1246(44017) |
Gaseous Volume(Argon) | Nmˆ3(SCF) | 1514(53464) |
Gas delivery rate | Nmˆ3/H(SCFH) | 75(2649) |
Pallet Width "A" | mm(inch) | 1500(59.05) |
Pallet Length "B" | mm(inch) | 1500(59.05) |
Tank Diameter "D" | mm(inch) | 1308(51.5) |
Overall Height "H" | mm(inch) | 3060(120.47) |
Material: | Inner vessel: stainless steel | Outer vessel: stainless steel |
Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.
Full sets of test report are provided along with microbulk tanks.
Third party test reports are available upon request.
More details about reports and certificates, just contact Victank.
Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years, which is the best and only in the world!
Free training on installation, operation and maintenance.
Life-long technical assistance online.
4units 1m3 microbulk tank shipped by one 20FT container.
3units 2m3 microbulk tank shipped by one 20OT container. (open top container)
3units 3m3 microbulk tank shipped by one 20OT container. (open top container)
2units 5m3 microbulk tank shipped by one 20OT container. (open top container)
