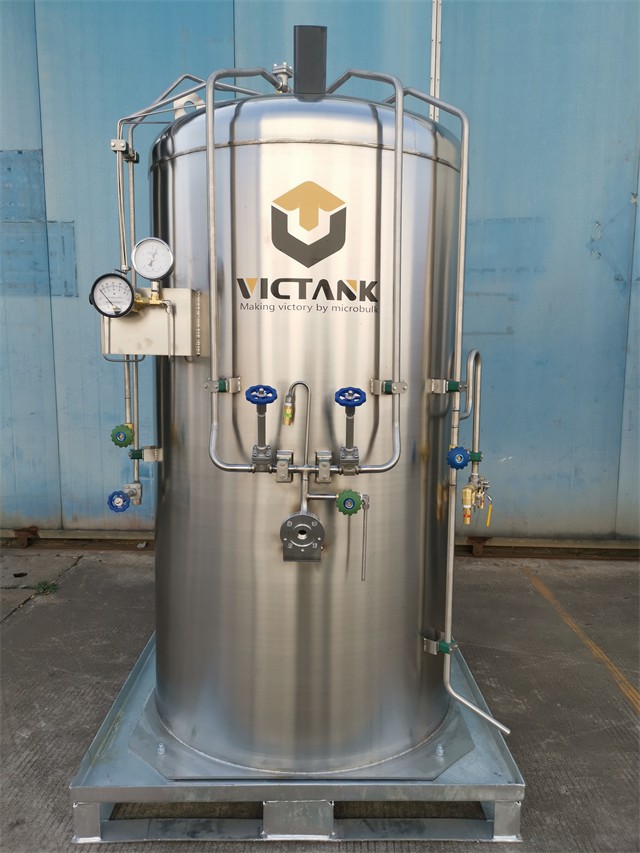

LOX LIN LAR Microbulk Tank 1000L 24bar PB COIL

Standard: ASME
Water capacity: 1000L
Working pressure: 24bar
Gas Medium: liquid oxygen (LOX), liquid nitrogen (LIN), liquid argon (LAr).
Advantages:
On-Site Gas Filling Solution
With PB COIL gas delivery 25NM3/H
Availability:
Inquire Add to Basket

Victank microbulk tanks offer a better solution of end-to-end liquid gas delivery, replacing all your costly gas cylinders.


It improves gas transportation, charging and storage management greatly. It can be used for medical gas charging, industrial gas supply, welding and cutting, etc., to meet the needs of small and medium-sized supply stations in different fields.



   LOX LIN LAR Microbulk Tank 1000L 24bar PB COIL 1    LOX LIN LAR Microbulk Tank 1000L 24bar PB COIL


ASME standard 1000L-16bar

MB1000MP PB COIL

MAWP

Mpa(psi)

2.4(350)

Max.   Pre-set Operating Press

Mpa(psi)

1.7(250)

Gross   Volume

L(gal)

1030(272)

Net   Volume

L(gal)

979(258)

NER(Nitrogen)

%/Day

0.7

Tare   Weight

kg(lbs)

840(1852)

Gaseous   Volume(Oxygen)

Nmˆ3(SCF)

781(27589)

Gaseous   Volume(Nitrogen)

Nmˆ3(SCF)

629(22219)

Gaseous   Volume(Argon)

Nmˆ3(SCF)

764(26988)

Gas   delivery rate

Nmˆ3/H(SCFH)

25(883)

Pallet   Width "A"

mm(inch)

1250(49.21)

Pallet   Length "B"

mm(inch)

1250(49.21)

Tank   Diameter "D"

mm(inch)

1108(43.62)

Overall   Height "H"

mm(inch)

2250(88.58)

Material:

Inner   vessel: stainless steel

Outer vessel: stainless steel


Victank microbulk tanks meet the most stringent international standard. With strict management and test procedure, Victank microbulk tanks enjoy high performance and reliable quality.


Full sets of test report are provided along with microbulk tanks.

Third party test reports are available upon request.


microbulk tankmicrobulkmicrobulkmicrobulkmicrobulkmicrobulk

Victank Microbulk tanks always maintain a qualified vacuum and heat preservation performance. We give warranty of 7 years for vacuum, which is the best and only in the world!


Free training on installation, operation and maintenance.

Life-long technical assistance online.




LOX LIN LAR Microbulk Tank 1000L 16bar PB COIL (5)            LOX LIN LAR Microbulk Tank 1000L 16bar PB COIL (2)


  • 4units 1m3 microbulk tank shipped by one 20ft container.

  • 3units 2m3 microbulk tank shipped by one 20OT container or one 40ft container.

  • 3units 3m3 microbulk tank shipped by one 20OT container or one 40ft container.

  • 2units 5m3 microbulk tank shipped by one 20OT container or 3 units by one 40ft container.



IMG_20210813_133333      IMG_20210813_135704
